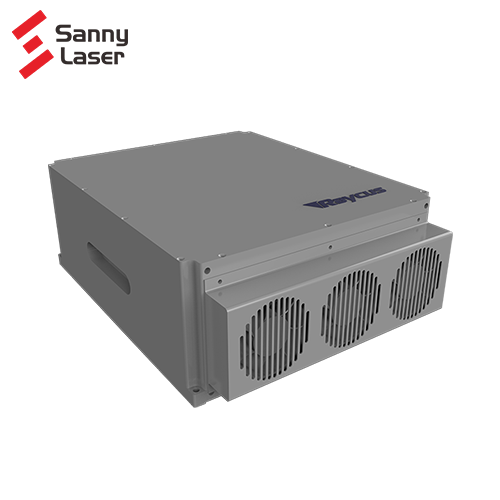

20W Q-Switched Pulse Fiber Laser RFL-P20QE
20W Q-Switched Pulse Fiber Laser RFL-P20QE

20W Q-Switched Pulse Fiber Laser RFL-P20QE

The 20-100W Q-Switched Pulse Fiber Laser Series developed by Raycus is the industrial marking and micromachining laser.
INQUIRY
Description
Technical characteristics
  • Highly stable laser output
  • High single-pulse energy
  • High marking efficiency
  • Short pulse setup time
  • High reliability
  • Maintenance-free operation

Optical Properties
  • Average output power: (W): 20
  • Central wavelength: (nm): 1064
  • Repetition frequency: (kHz): 10-50
  • Output power stability: <3%

Output characteristics
  • Output Beam Diameter(mm): 7±1
  • M²:<1.5
  • Polarization state: random
  • Pulse Width Range(ns):110-140
  • Max.Single Pulse Energy(mJ):0.67Delivery Cable length (m): 3(Customizable)

Electronic control characteristics
  • Input power (V DC ): 24
  • Power adjustment range (%): 10-100

Other characteristics
  • Dimensions (mm ): 260*120*340(handle included)Cooling method: Air-cooled
  • Working temperature (℃ ): 0-40



Application of 20W Q-Switched Pulse Fiber Laser RFL-P20QE
  • Rust Removal
  • Oil Cleaning
  • Mold Surface Treatment
  • Paint Stripping
  • Welding Surface Pre-treatment
  • Portrait Stone Surface Treatment
