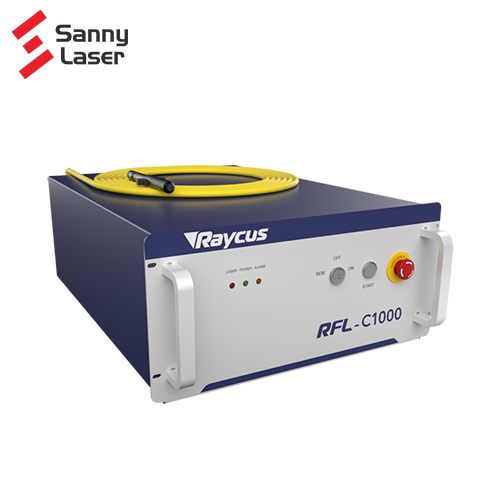

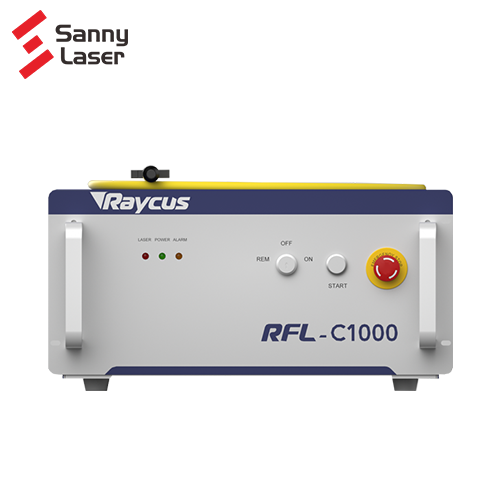

1000W Single Module CW Fiber Laser RFL-C1000
1000W Single Module CW Fiber Laser RFL-C1000 1000W Single Module CW Fiber Laser RFL-C1000

1000W Single Module CW Fiber Laser RFL-C1000

The third-generation single module CW fiber laser series developed by Raycus ranges from 300W to 3,000W, the new lasers have higher electro-optical conversion efficiency, higher and more stable optical quality, stronger altitude stress-resisting capacity
INQUIRY
Description
Technical characteristics
  • High electro-optical conversion efficiency
  • Output fiber length can be customized
  • QBH/QD connector
  • Maintenance-free operation
  • Wide modulation frequency range
  • Small size, easy to install

Optical Properties
  • Average output power: (W): 1000
  • Central wavelength: (nm): 1080±5
  • Maximum modulation frequency: (kHz): 5
  • Output power stability: ±1.5%
  • Red laser: Yes

Output characteristics
  • Output connector: QBH (customizable)
  • output fiber core diameter (μm): 25 (customizable)
  • beam quality:1.3
  • polarization state: random
  • output fiber length (m): 20(customizable)

Electronic control characteristics
  • Input power (V AC ): 200-240, Single Phase
  • Control mode: external RS232, external AD, super terminal
  • power adjustment range (%): 10-100

Other characteristics
  • Dimensions (mm ): 485*237*748(handle included)
  • Weight (kg): <50
  • Cooling method: water cooling
  • Working temperature (℃ ): 10-40



Application of 1000W Single Module CW Fiber Laser RFL-C1000
  • Precision Cutting
  • Metal Welding
  • Sheet Metal Piercing
  • Metal Carving
  • Surface Treatment
  • 3D Printing/Rapid Prototyping
